Hospital equipment X-ray medical Device Operation Room lift electric table
Specifications:
Multifunctional operating table meet various requirements of operations,long horizontal sliding, suitable for C arm and X-ray.
Medical equipment: electrical surgical table:

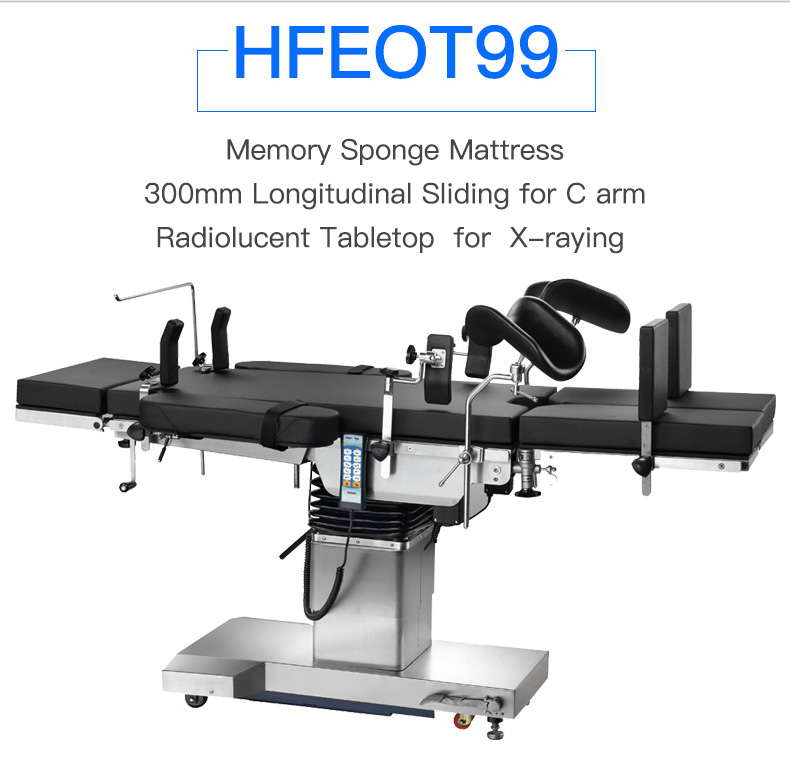

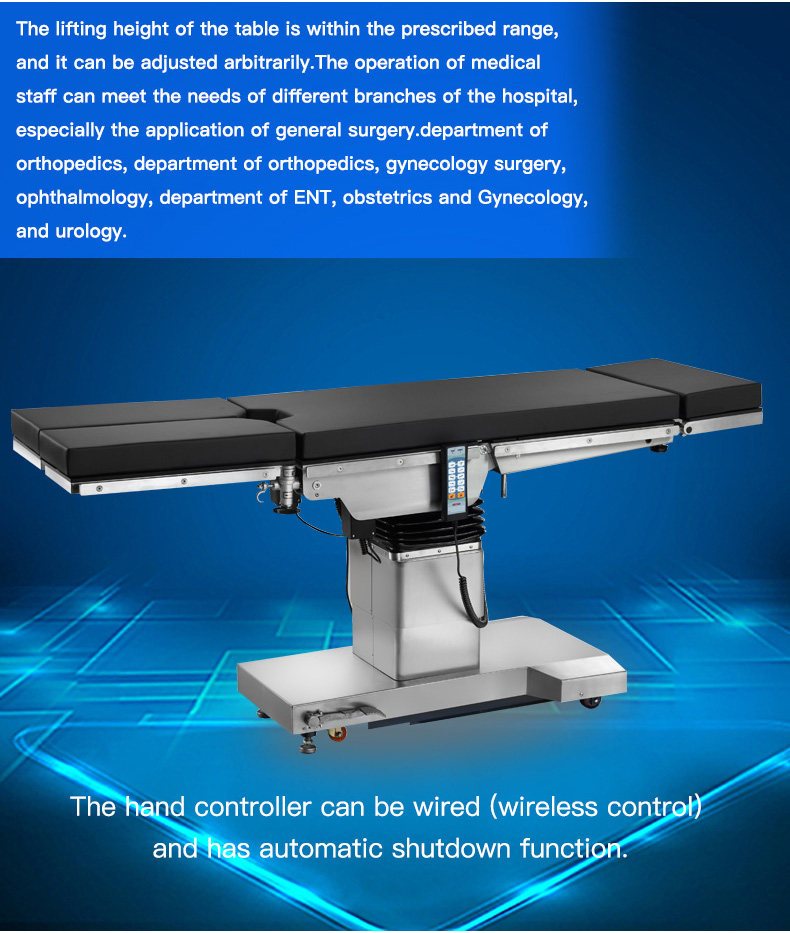

HFEOT99 as an advanced automatic operating table.can meet various requirements of operations,long horizontal sliding,suitable for X-ray and C-arm.
It adopts mirco touch remote control,any movements can be adjusted by it.Flexiable adjustment on head plate,back plate and seat plate,built-in kidney bridge.
High automation,low noise,high reliability.
Description:
1. Meet demand of general surgical operation;
2. Electro-hydraulic operating table;
3. Adopts full 304 stainless steel;
4. Excellent properties on anti-rust;
5. Tabletop is X-raying available;
6. Tabletop can slide for over 300mm.
Main Features:
1. Optional mechanical brake and electric brake.
2. Overall table is made of high quality 304 stainless steel.
3. Buile-in kidney bridge meets C-arm need.
4. Rational base design provides an active space for medical staffs' feet.
5. Imported hydraulic control system achieves low noise, high security and reliability.
6. Leg panels can be replication, outreach and removable, convenient for surgery.
7. The table has five parts: head board, back board, kidney elevator, hip board and leg board.
8. High-tech PU matress makes the patients relaxed and comfortable.
How about the detailed specification?
| Technical parameter | Details |
| Length/Width | 2000mm/550mm |
| Elevation(up/down) | 680mm/930mm |
| Trendelenburg | ≥25° |
| Reverse Trendelenburg | ≥25° |
| Lateral Tilt(left/right) | 15°/15° |
| Head Rest(up/down) | 45°/90° |
| Footplate(up/down&horizontal positioning) | 90°90°15° |
| Back plate(up/down) | 75°/20° |
| Kidney bridge | 110mm |
| Sliding | 300mm |
| Power | 220v,50Hz,1.0kW |
| Warranty | 1 year |
